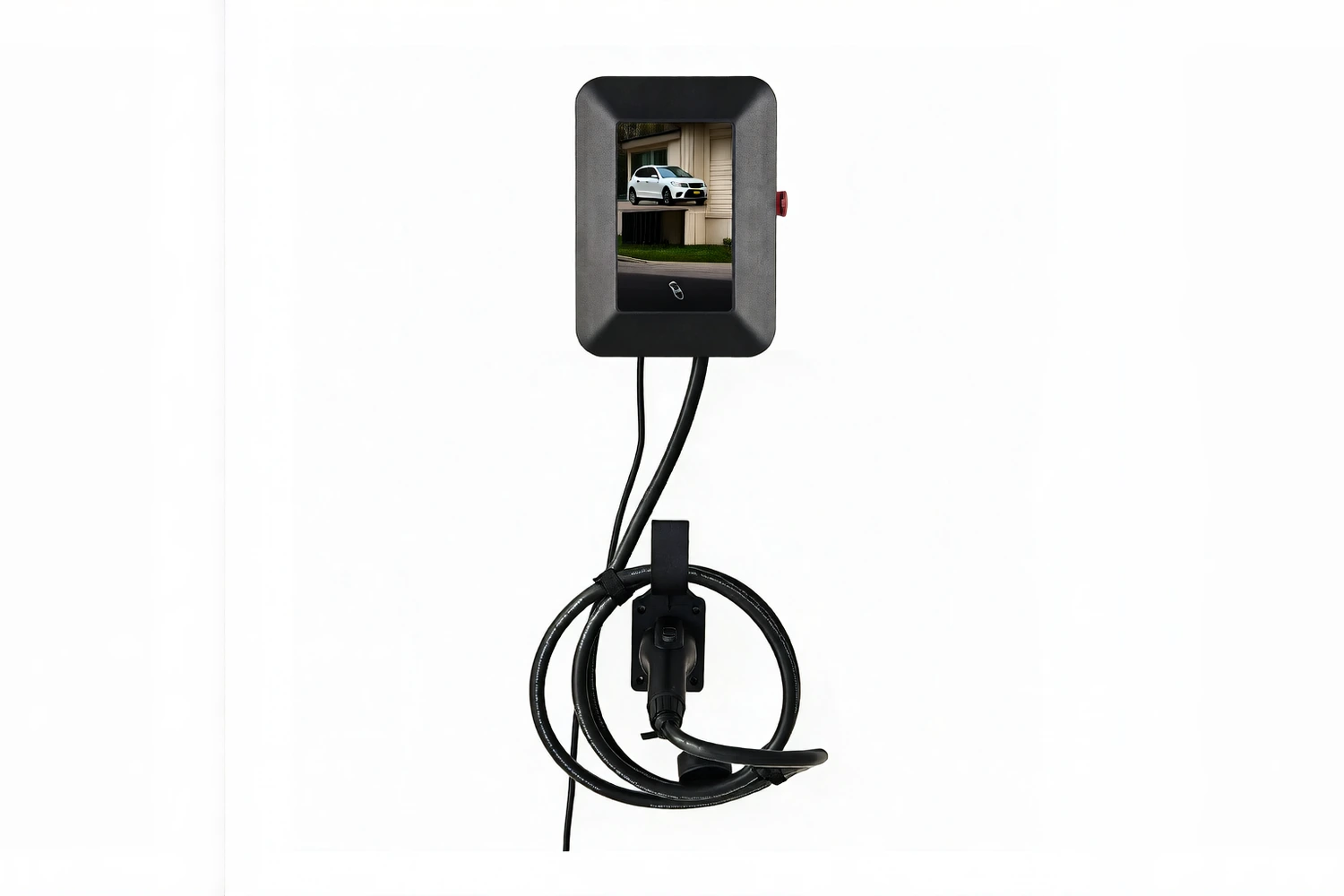

Three-phase AC wallbox for residential and light commercial charging, with an integrated Type 2 cable and an enclosure rated for outdoor mounting.
EMS2 AC Wallbox — 32 A, 3-phase, Type 2
Pricing
from USD 113 / unit, USD 108 at volume
Pricing, lead time and payment terms are confirmed on the quotation for the quantity, connector standard and destination market you specify.
Certifications
CERoHSThe parameters that drive your specification, in one block.
HLD-WB-PBF-T2-22
Contractual terms, a named contact and the documents themselves - stated before you commit.
Order, payment and shipping terms are written into one contract - Incoterms® 2020, USD pricing, T/T or L/C - so what you approve at quotation is what ships.
Every enquiry reaches a named contact and receives a written reply within one business day.
Specification sheet, declaration and test reports are issued with the quotation, before any order is placed.
HLD-WB-PBF-T2-22
Documented values for this model. Parameters not listed are confirmed on the quotation.
Documented values for this model. Parameters not listed are confirmed on the quotation.
| Parameter | Metric | Imperial |
|---|---|---|
| Model | HLD-WB-PBF-T2-22 | - |
| Current rating | 32 A | - |
| Voltage | 400 V AC | - |
| Phases | 3 phase | - |
| Connector type | Type 2 | - |
| Cable included | Included | - |
| Cable length | 5 m | 16.4 ft |
| Conductor cross-section | 5 x 6 mm2 | 5 x 10 AWG |
| Jacket / sheath material | LSZH, flame retardant | - |
| IP rating | IP54 | - |
| Certification | CE / RoHS | - |
Certification rows state the documents held for this model; see Certification & compliance.
Packaging: export carton / pallet, dimensions confirmed per order.
Export packing: protective bag, foam and corner protection in a printed carton, palletised for sea freight on request. Carton dimensions and gross weight are confirmed on the quotation; custom logo and packing artwork are available under OEM.
Gross weight: confirmed with the packing list per shipment.
Lead time: on request (stock-dependent)
The current status for this model is on request, stock-dependent: in-stock items ship first and mixed-container orders are scheduled on confirmation.
Overview, specifications, details, packaging, manufacturing and certification.
01 Overview
Charging for home, fleet and light-commercial sites
Three-phase AC wallbox for residential and light commercial charging, with an integrated Type 2 cable and an enclosure rated for outdoor mounting.
02 Specifications
Documented values for this model. Parameters not listed are confirmed on the quotation.
| Parameter | Metric | Imperial |
|---|---|---|
| Model | HLD-WB-PBF-T2-22 | - |
| Current rating | 32 A | - |
| Voltage | 400 V AC | - |
| Phases | 3 phase | - |
| Connector type | Type 2 | - |
| Cable included | Included | - |
| Cable length | 5 m | 16.4 ft |
| Conductor cross-section | 5 x 6 mm2 | 5 x 10 AWG |
| Jacket / sheath material | LSZH, flame retardant | - |
| IP rating | IP54 | - |
| Certification | CE / RoHS | - |
Certification rows state the documents held for this model; see Certification & compliance.

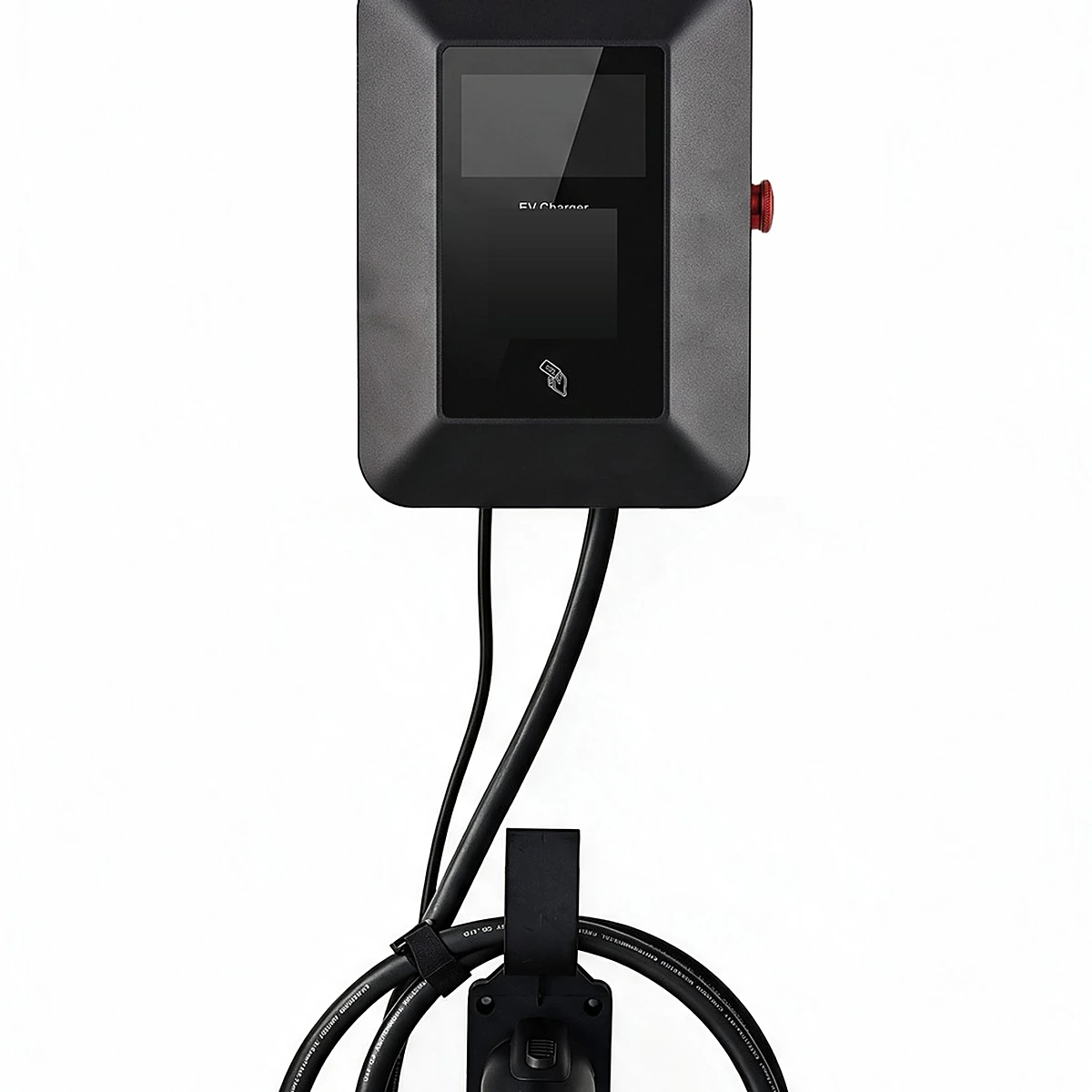

03 Details
04 Packaging
Export packing: protective bag, foam and corner protection in a printed carton, palletised for sea freight on request. Carton dimensions and gross weight are confirmed on the quotation; custom logo and packing artwork are available under OEM.
Gross weight: confirmed with the packing list per shipment.
05 Manufacturing
Assembled within our four integrated production lines - portable chargers, wall-mounted chargers, wiring harnesses and cables - under one quality, brand and compliance system. The Chengdu base handles production, quality control and export packing in one chain, so a specification agreed at quotation is the specification shipped.
06 Certification & compliance
This model is documented to CE, RoHS.
Certification documents for this model are held by our affiliated manufacturing entities and are supplied with the quotation on request.
Certificates and test reports are matched to your destination market before shipment.
Sample document, for verification only - the copy for your order is matched at quotation.
Where this product family is installed. The exact configuration is confirmed with our team.
Home garages and apartment parking bays on a fixed AC supply.
Daily top-up charging where vehicles return to the same bay.
Shared bays at retail, hospitality and office sites.
EMS3-32A-S
MOQ50 units
Get a quote
HLD-WB-PCK-GB-7
MOQ1 unit
Get a quote
Charging equipment and cable assembled within four integrated production lines, with production, quality control and export packing handled in one chain by our affiliated manufacturing entities.
Certifications are held by our affiliated manufacturing entities. Every order ships with a Declaration of Conformity issued in the name of the producing entity, plus the matching EMC and LVD test reports - sent with the quotation, so your compliance team can review them before purchase.
Order, documentation and lead-time questions for this model.
This model is documented at 32 A. Tell us the supply voltage and phase available on site and we confirm the matching configuration on the quotation.
The documents recorded for this model are CE / RoHS. They are held by our affiliated manufacturing entities and are supplied with the quotation on request; certificates and test reports are matched to your destination market before shipment.
MOQ is 50 units, and pricing is quoted per order. Send the quantity, connector standard and destination market, and you receive an FOB (Incoterms® 2020) quotation in USD - we reply within one business day.
Lead time is confirmed per order on the quotation: in-stock items ship first and mixed-container orders are scheduled on confirmation. The exact date is stated on your quotation.
Yes - logo, colour, cable length and packing artwork can be customised to your specification. A quotation with drawings follows within 1-3 working days.
